How to create a Framework Manager Model and Publish package

1. Start Framework Manager and click on “Create new project”

2. On clicking the link we are asked to enter a name for the project. Enter a relevant name and location for the project and then click on OK. In this case we name our model as GOSALESDW.

3. Now you are prompted to select language for the project. In this case we select English as shown in below  screen shot  and click on OK.

4. Now you are prompted to select the metadata source. Select Data Sources (highlighted in screenshot) and click next. You can use any other type of datasource as present in the list below depending on the project requirement.

 5.  On selecting Datasources, a list of available data sources is populated. Select appropriate datasource and click next. Alternatively you can click on new to create a new datasource. We already have a data source called DS_GOSALES, we will use this here.

6. In the next screen you can select the tables you want to Import in the Model. Alternatively you can select Views,functions, procedures, Synonyms as per the project requirement. Here we expand tables.

Select the required tables by clicking the check box and click Next.

7. In the next screen is the generate relationships screen. You can click on the check box button for “Use primary and foreign keys” to generate relationships. In this case we don’t want the relationships. Click on the Import button. Ideally we avoid pulling up existing relationships.

Click finish to complete the import process.

8. Now you can see the Sample Project in the project viewer pane of FM as shown below.

9. Rename the Datasource as “GOSALESDW_TRAINING” . The Model looks like as shown below.

Right click on GOSALESDW_TRAINING  to create a new namespace as shown in screenshot below. Name it as DataBaseView.

  Select  all the tables in GOSALESDW_TRAINING Namespace



Drop them into DataBaseView namespace. Now the model looks like as shown below. All the tables are in DatabaseView. The Data base view is designed such that it is exact replica of the Database tables. We do not make any changes in table properties in this view. The next step is to create a businessview.



10. Right Click on the GOSALESDW_TAINING click CreateàNamespace. Rename the namespace as “Business View” as shown in the screen shot below. BusonessView is the Layer in which we alter properties of tables and make required changes. There are four important thing that we do in business Layer

a. Business Naming of Tables.

b. Set usage properties of columns for all the tables

c. Create relationships among tables

d. create calculations and filters if any required at the FM level.

BusinessView is highlighted in below screenshot. In businessView we can created query subjects of three types

a.       Model Query Subject

b.      Database Query Subject

c.       Stored procedure Query Subject

In this case we will create Model Query Subject as we will pull queries from Database View.

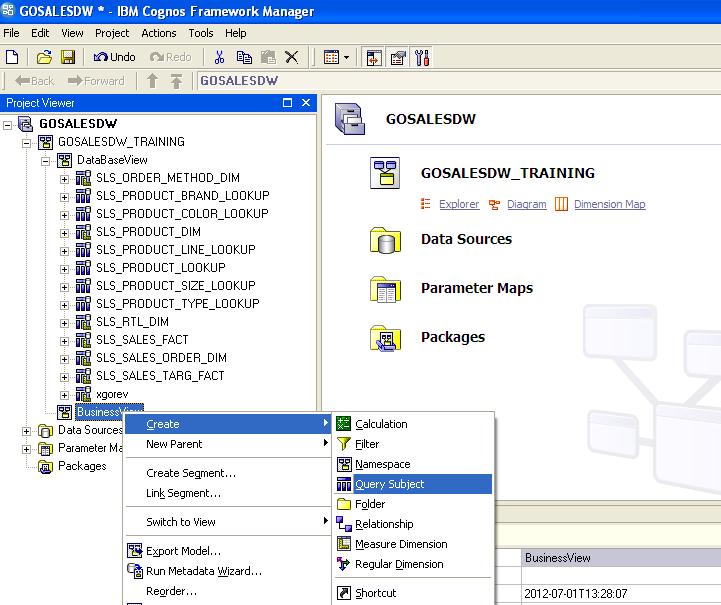

11. Right Click on the Business view click CreateàQuery Subject. (we will create Model query Item for the Business View).

12. You are asked for the type of the query Item you want to create. We can create three types of query subjects

a. Data source query Subject

b. Model Query subject

c. Stored procedure query subject.

Create Model Query subject for the tables which are required in the Business view from the database view.

Give a proper name to each query subject created in the Business view.

In this case we have selected Model Query and named the Query Item as D_ORDER_METHOD.

 Click OK.

13. Drag the required columns from the Table in Database view to the new Modal query Item. In this case we pull all the columns from the D_CALENDAR table of the database view. Click OK. Similarly you can create Model query items for other required Tables.

In the same manner pull all other relevant tables Model query subject in the Businesslayer.

14. After pulling the required tables in Business view. Expand each table and check the usage properties for the columns.

There are three types of usage properties

a. Identifier

b. Attribute

c. Fact

Make sure that usage property for all the keys and date fields is set to Identifier. Usage should be set to Fact for all numeric values and for the remaining items the property should be set to attribute.





15. We need to create relationship between the query items. To create a relationship Right Click on the query Item Click Create àRelationship as shown in the screenshot below.



16. A relationship definition window as shown below opens up. You can define the relationship between the fact and dimension table in this window. Make sure the cardinality is 1..n at the Fact table end and is 1..1 at the dimension table side. After adding appropriate link click on OK Same is shown in the below screen shot. The two red arrows show cardinality between dimension and fact tables.





17. Next step is to create Report View from business view. To do so we initially create Alias shortcuts for the query items in the Business view and then drag them in to a new namespace called Report view.

Now we have the alias shortcut of the query Items present in the Business view in the Report View.

To create an alias shortcut right click on the query item click Createàalias short cut. For Report View we can create star schema grouping of required dimensions and fact. In business View select required dimensions and fact, right click and select "Create Star Schema Grouping". Create a new Namespace whcih can be renamed to reporting view or can be given a relevant name.



18. The next step is to create a package from the Model. To create a new package right click on Package folder present in the Project Viewer pane of FM and click CreateàPackage.

Process to create package is shown in below screenshot.

19. Next window asks for providing a name to package. Enter appropriate name and click next. You can write a small description if you wish to.

20. Next window asks for the object definitions to be included in the package.

Select the desired objects and click next. In this case we select BusinessView.

21. Next window asks you for the “select function list” wherein you can select functions that you want to be there in “available functions list” the model while creating reports. In this case we keep only SQL server. However, you can select all functions. The window for the same is shown in below screen shot. After selection appropriate functions click Finish.

22. Finally after clicking on Finish you get following message. You can click Yes to publish the package immediately or click on No to publish package at later point of time.

 If you wish to set “Governers”  click no . Select Package click ProjectàEdit Governers. Following window appears wherein you can set the governors like Query execution time limit, cross product (allow/deny) etc for the selected package.

23. On clicking YES a new window as shown in screen shot below appears which asks for the location you want your package to be published at. Make sure you uncheck the “Enable Model Versioning Box”. Click the next Button.

24. Next window is Add Security window. You can add security groups for your package if you wish to. The groups included here will only get the rights to republish the package.

There are three types of security settings

a. Package Level

b .Data Level (Row level)

c .Object Level

Click the next button.

25. Next window is options window. Make sure the check box for “Verify Model before publishing” is checked.

Click on the Publish button.

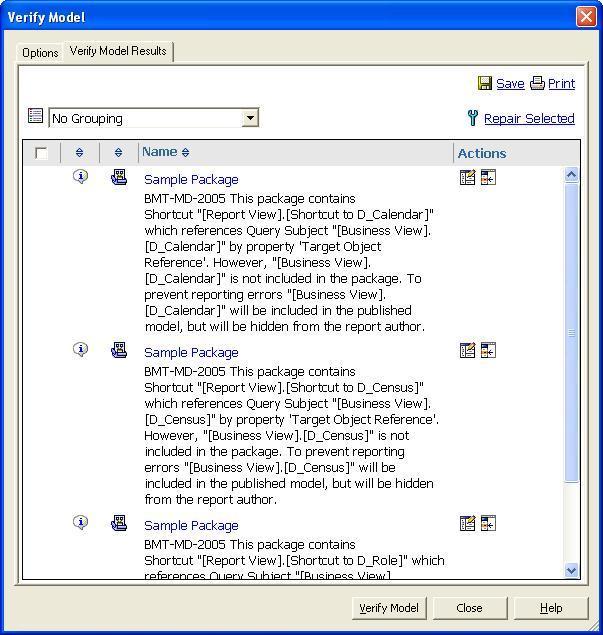

26. After you click on Publish you get following window which provides the result of verification. Click the close button.

27. Now if you go to Cognos Connection , you can see the published package as shown in the screen shot below.

This is how we create a Metadata Model using Framework Manager and publish the package on cognos connection.
